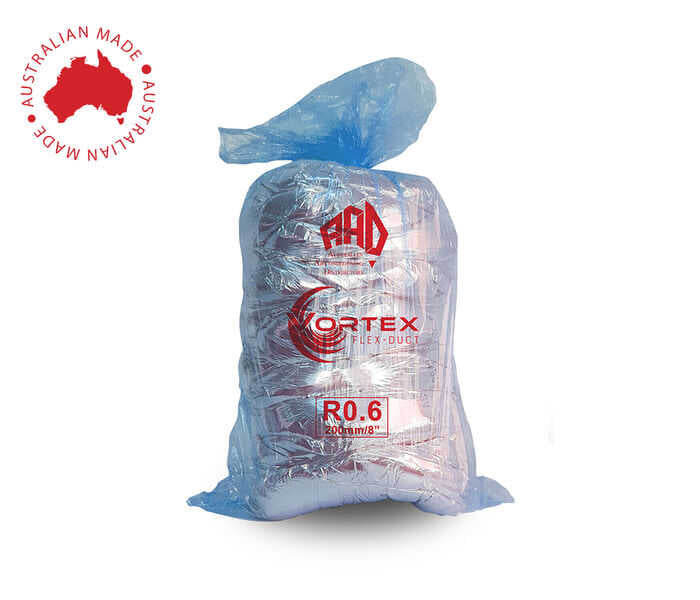

Vortex insulated flexible duct R0.6, 200mm x 6m (VF200)

Vortex insulated flexible duct R0.6, 200mm x 6m (VF200)

This Vortex insulated flexible duct, code VF200, has a 200mm diameter, R0.6 insulation and a 6m length. It carries heated or cooled air between fittings in a ducted system.

• Brand: Vortex
• Insulation: R0.6
• Diameter: 200mm
• Length: 6m
• Metalised inner core wrapped in polyester insulation, with a metalised outer fire jacket
• Operating temperature: -20°C to +80°C
• Operating pressure: -190Pa to +1200Pa
• Complies with AS 4254.1
• Code: VF200

Fit it to 200mm spigots on takeoffs, dampers, Y branches or outlets. Extend the duct fully before cutting so the length is accurate and the inner core runs smooth, then seal the core joint and the jacket joint separately. Support the duct with hanging strap rather than letting it lie across ceiling joists or rest on plasterboard.

Before ordering, check that the R0.6 rating suits the job, since some installations call for more insulation. Check the insulation R-value required for your climate zone and application before ordering. Make sure every connection on the run is 200mm.

We don't show live stock levels on our website, because our products are held by our suppliers in New South Wales and Victoria. Stock is confirmed with the supplier when your order is processed. If an item is unavailable or delayed, we will contact you by phone or email to offer an alternative, an expected dispatch date or a full refund, whichever you prefer.

• Delivery area: every Australian state and territory.
• Delivery cost: $40 per order for parts and accessories, free for orders of $600 or more; $89 per order for air conditioning and heating units, with any parts and accessories in the same order shipped free. One charge per order. Prices include GST and are shown at checkout before you pay.
• Dispatch: usually within 1 business day (allow up to 3 business days). Orders placed after 12:00 pm Sydney time are processed the next business day.
• Delivery time after dispatch: usually 3 to 4 business days to most addresses, and up to 10 business days to regional and remote areas, including WA, the NT and Tasmania.
• Pickup: not available. All orders are delivered.

AC Hub Direct does not run its own warehouse. Orders are dispatched from our suppliers' warehouses in New South Wales and Victoria, usually from the location nearest to you that has stock.

See our Shipping and Delivery Policy for full details.

Change of mind: request a return within 14 days of delivery. Items must be unused, uninstalled and in their original unopened packaging. A 15% restocking and administration fee applies, you pay the return freight, and the original delivery charge is not refunded.

Cancellations: if you cancel before your order is dispatched, we refund it less a 4% administration fee, which covers payment processing costs. Once an order is dispatched, a cancellation is handled as a change-of-mind return.

Faulty, damaged or incorrect items: no restocking fee, and we cover the return freight. Your rights under the Australian Consumer Law apply.

See our Returns and Refunds Policy for full details.

Manufacturer's warranty terms vary by brand, and some manufacturers require installation by a licensed technician or purchase from a dealer they have authorised, so please ask us for the manufacturer's published warranty terms before you buy; your rights under the Australian Consumer Law are not affected.

If you receive a faulty, damaged or incorrect item, contact us with your order number and photos. We will arrange a repair, replacement or refund in line with the Australian Consumer Law.

See Warranty Information.
