Vortex acoustic insulated flexible duct R1.0, 450mm x 6m (VH450)

Vortex acoustic insulated flexible duct R1.0, 450mm x 6m (VH450)

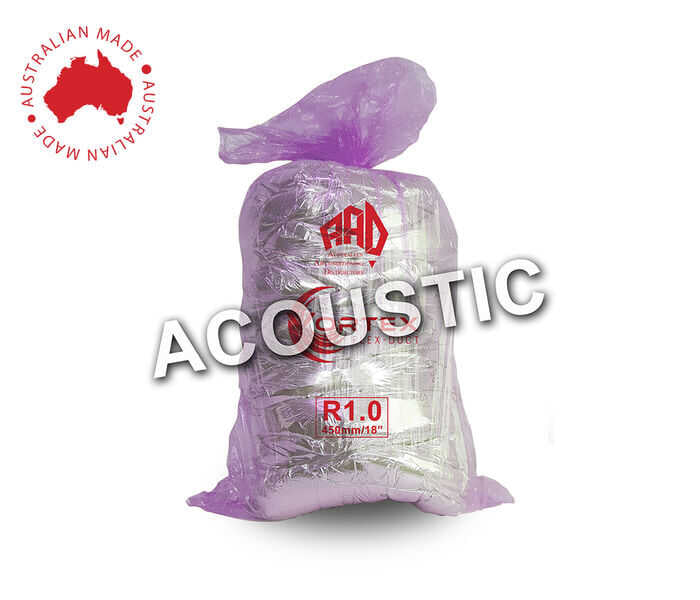

Vortex VH450 is a 450mm Acoustic flexible duct with an R1.0 insulation rating, supplied 6m long for ducted heating and cooling.

• Brand: Vortex
• Insulation: R1.0
• Diameter: 450mm
• Length: 6m
• Metalised inner core wrapped in polyester insulation, with a metalised outer fire jacket
• Operating temperature: -20°C to +80°C
• Operating pressure: -190Pa to +1200Pa
• Complies with AS 4254.1
• Code: VH450
• Range: Vortex Acoustic

A 450mm duct normally forms a main run, connecting the indoor unit, a plenum or a large branch fitting with 450mm spigots. Take care unpacking and pulling it out so the outer jacket is not torn, and support it with strap so it holds a straight line. Seal the core joint and then the outer jacket at each end.

Before ordering, confirm the 450mm spigot size at both ends and the space available in the ceiling for a duct this large. Check the insulation R-value required for your climate zone and application before ordering.
