Toshiba 7.1kW 4-way cassette, R32 (RAV-GM801UTP-A)

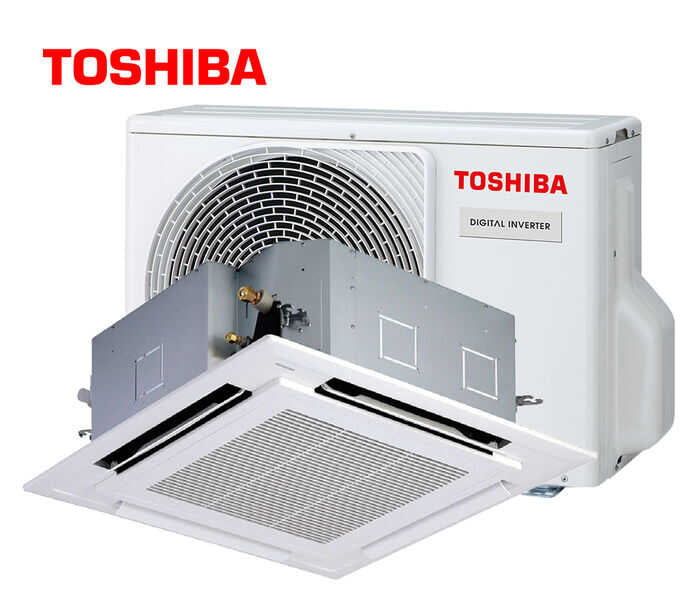

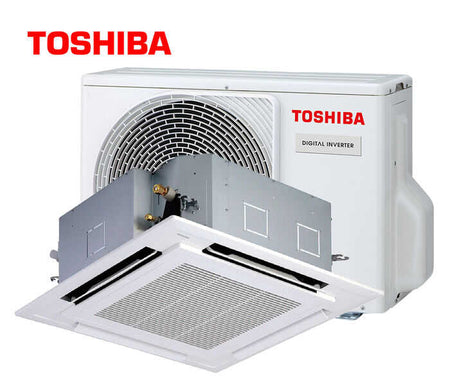

Rated at 7.1kW, the Toshiba RAV-GM801UTP-A four way ceiling cassette is supplied with the RAV-GM801ATP-A outdoor unit. It is a reverse cycle system charged with R32 refrigerant, and a wireless remote controller is supplied.
- Capacity: 7.1kW
- Model: RAV-GM801UTP-A / RAV-GM801ATP-A
- Refrigerant: R32
- Discharge: four way
- Configuration: ceiling cassette, reverse cycle
- Control: wireless remote controller supplied

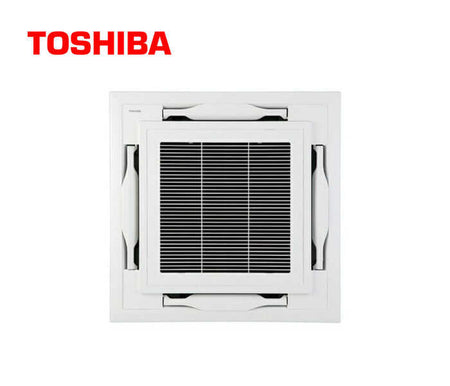

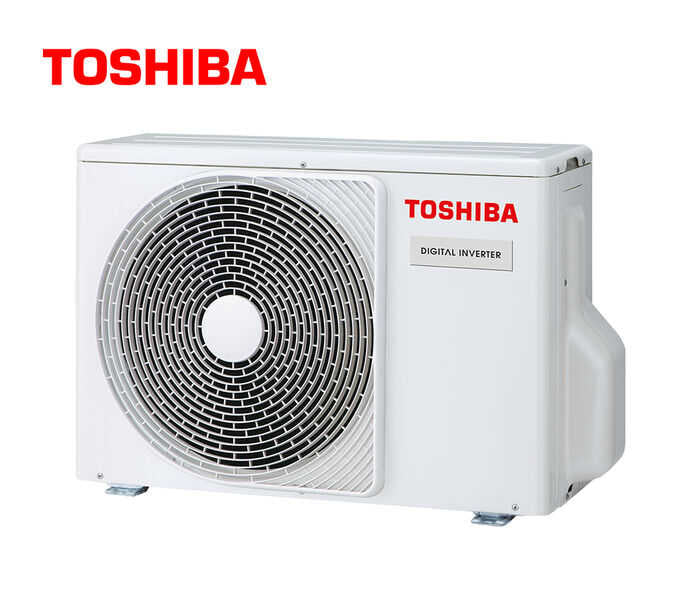

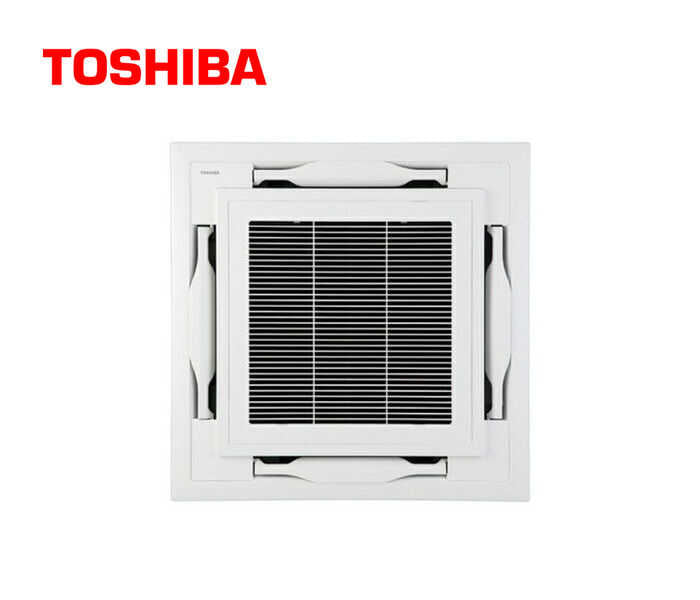

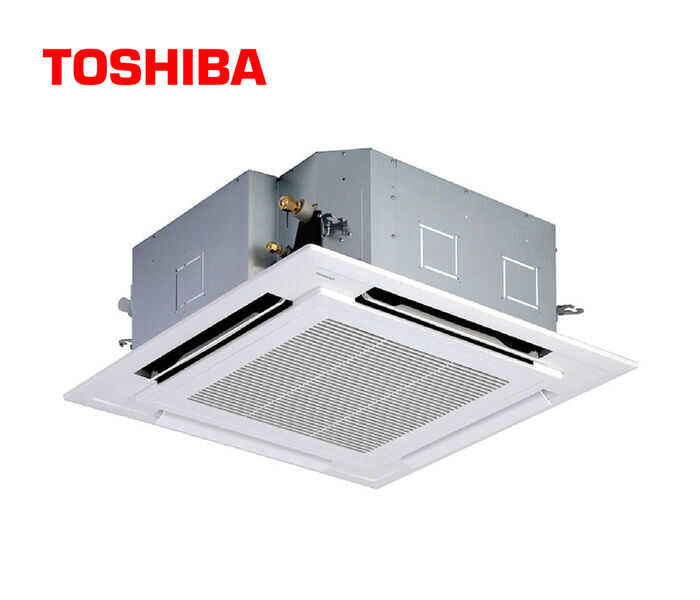

The chassis recesses into the ceiling and sends air out from all four sides of the fascia, distributing it from one central position across an open floor area. A cassette is usually centred in the space it serves, so think about lights, fans and ceiling joists when choosing the spot. Refrigerant pipework and interconnecting cable link the indoor unit with the RAV-GM801ATP-A outdoor unit, and condensate is piped to a drain. The refrigerant work must be done by an ARC-licensed technician.
Confirm the outdoor unit's supply requirements with a licensed electrician, as the listing does not give a power supply. Have the space's load checked to confirm 7.1kW, and check whether a fascia panel comes with the cassette or is ordered separately.
