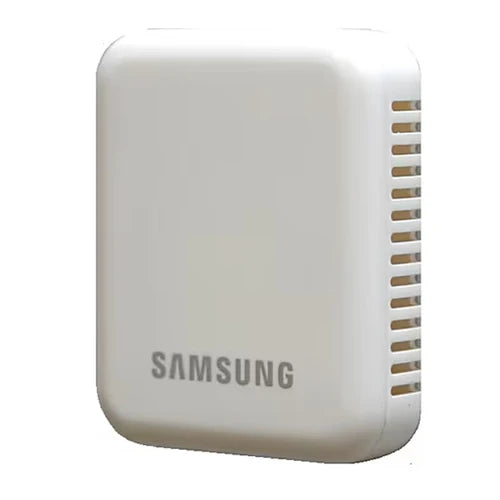

Samsung remote temperature sensor kit (MRW-TA)
Part MRW-TA is a remote temperature sensor for Samsung ducted air conditioning systems. It connects to a single indoor unit and senses temperature outside the unit chassis.
- Part number: MRW-TA
- Function: external temperature sensing for one indoor unit
- Connection: PCB adaptor to the indoor unit PCB
- Supplied with: connection wire, mounting screws, gasket, cable ties, PCB adaptor and wire connectors
Mounting the sensor away from the chassis gives a temperature reading taken in the occupied area rather than at the unit. The kit comes complete with the connection wire, mounting screws, gasket, cable ties, PCB adaptor and wire connectors, and it connects through a PCB adaptor to the indoor unit PCB. Because the connection is made at the indoor unit's circuit board, the work is done by the installer with the power isolated.
Each kit serves one indoor unit, so order one for each unit that needs a remote sensor. Check the indoor unit is a Samsung ducted unit suited to this sensor, and plan where the sensor will be mounted and how far its wire must run back to the unit.
