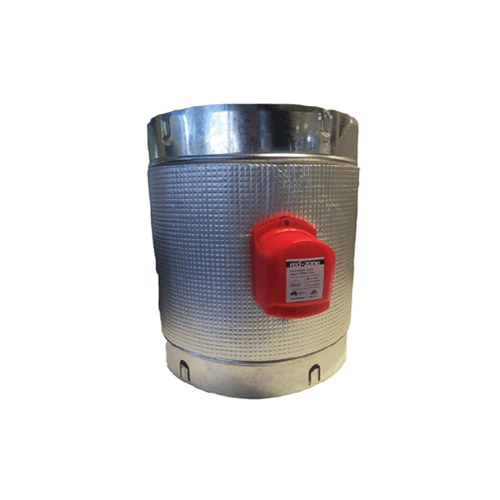

Redzone motorised zone damper 350mm, 24V, 2.5Nm (MDM350L)

Redzone motorised zone damper 350mm, 24V, 2.5Nm (MDM350L)

The MDM350L is a Redzone motorised zone damper sized for 350mm duct, with a 24V, 2.5Nm drive open, drive close motor.

• Brand: AAD
• Range: Redzone
• Size: 350mm
• Motor: 24V, 2.5Nm, drive open and drive close
• Galvanised barrel with 5mm silver insulation
• Folded metal blade with 12mm foam seal
• Metal shaft, brass motor brushes
• Code: MDM350L

A 350mm damper usually sits on a larger zone duct. When the controller turns a zone off, the 24V motor drives the folded metal blade closed against its 12mm foam seal, and it drives it open again when the zone is called. The barrel is galvanised with 5mm silver insulation, and the motor has a metal shaft and brass brushes.

Check that your zone controller supports 24V drive open, drive close dampers. Confirm the 350mm duct size and the control cable length needed to reach the damper. Join the duct with straps and tape, support the damper separately, and make sure the motor can be reached through the roof space later.
