Redzone motorised zone damper 250mm, 24V, 2.5Nm (MDM250L)

Redzone motorised zone damper 250mm, 24V, 2.5Nm (MDM250L)

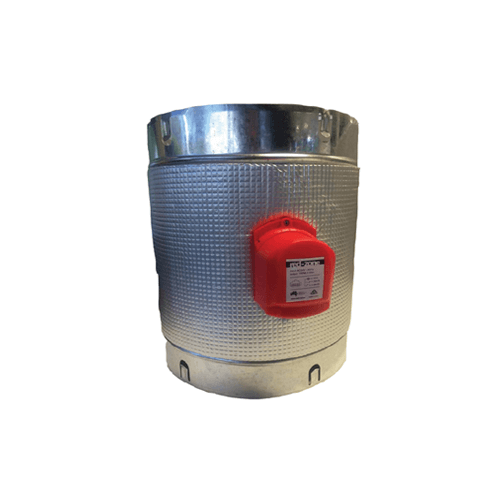

The MDM250L is a Redzone motorised zone damper for 250mm duct, with a 24V drive open, drive close motor rated at 2.5Nm.

• Brand: AAD
• Range: Redzone
• Size: 250mm
• Motor: 24V, 2.5Nm, drive open and drive close
• Galvanised barrel with 5mm silver insulation
• Folded metal blade with 12mm foam seal
• Metal shaft, brass motor brushes
• Code: MDM250L

Zone dampers let a single ducted system shut off areas that are not in use. This one is driven by a 24V motor that powers the blade both open and closed on a signal from the zone controller. The 12mm foam seal on the folded metal blade closes off the 250mm airway, and the galvanised barrel is lined with 5mm silver insulation.

Check that your zone controller supports 24V drive open, drive close dampers. Measure the duct to confirm 250mm, and check the control cable run from the controller to the damper position. Secure the flexible duct to each end with straps and tape, and hang the damper so it is supported on its own.
