Redzone motorised zone damper 200mm, 24V, 2.5Nm (MDM200L)

Redzone motorised zone damper 200mm, 24V, 2.5Nm (MDM200L)

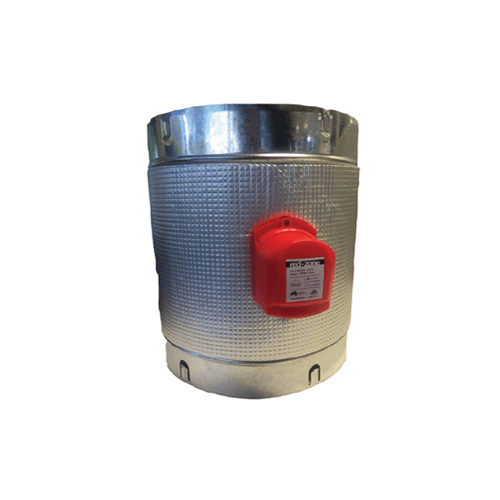

The Redzone MDM200L is a 200mm motorised zone damper with a 24V, 2.5Nm drive open, drive close motor.

• Brand: AAD
• Range: Redzone
• Size: 200mm
• Motor: 24V, 2.5Nm, drive open and drive close
• Galvanised barrel with 5mm silver insulation
• Folded metal blade with 12mm foam seal
• Metal shaft, brass motor brushes
• Code: MDM200L

Fitted into a 200mm branch duct, the damper opens and closes on command from the zone controller so air goes only to the zones that need it. Drive open, drive close means the motor moves the blade both ways. The folded metal blade has a 12mm foam seal, the barrel is galvanised with 5mm silver insulation, and the motor has a metal shaft and brass brushes.

Check that your zone controller supports 24V drive open, drive close dampers. Count the zones in your design and the duct size for each before ordering, as each damper must match its duct. Join the duct to the barrel with straps and tape, and support the damper independently so the duct does not sag.
