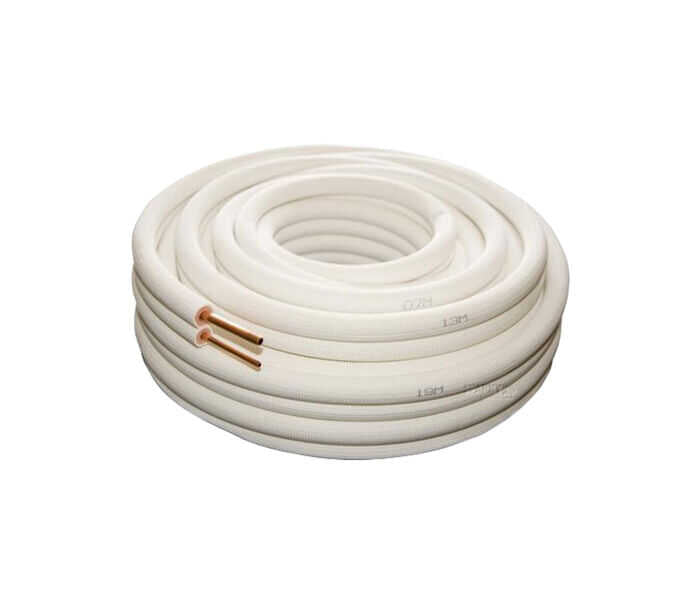

Paired copper coil 1/4" + 3/8" x 5m, insulated (PC51438)

Paired copper coil 1/4" + 3/8" x 5m, insulated (PC51438)

A 5m pre-insulated paired copper coil with 1/4" and 3/8" lines in 9mm PE insulation, for short split system installations.

• Brand: AAD
• Range: Aradon
• Lines: 1/4" and 3/8"
• Length: 5m
• Insulation: 9mm PE
• Insulation R-value: R.61/.55
• Annealed copper tube to AS 1571
• R410A rated
• Insulation colour: white
• Code: PC51438

It is handy for back-to-back installs and other short runs where a full-length coil would leave a lot of offcut. Cut the pair to length, flare or braze the ends to the indoor and outdoor unit connections, and seal the insulation over every joint so no bare tube is exposed. Refrigerant pipework must be installed by an appropriately licensed technician.

Measure the route to make sure 5m is enough, including bends, and confirm the unit calls for 1/4" and 3/8" pipe sizes. If the job specifies a particular insulation type or thickness, compare it with the 9mm PE insulation listed. The refrigerant work must be done by an ARC-licensed technician.
