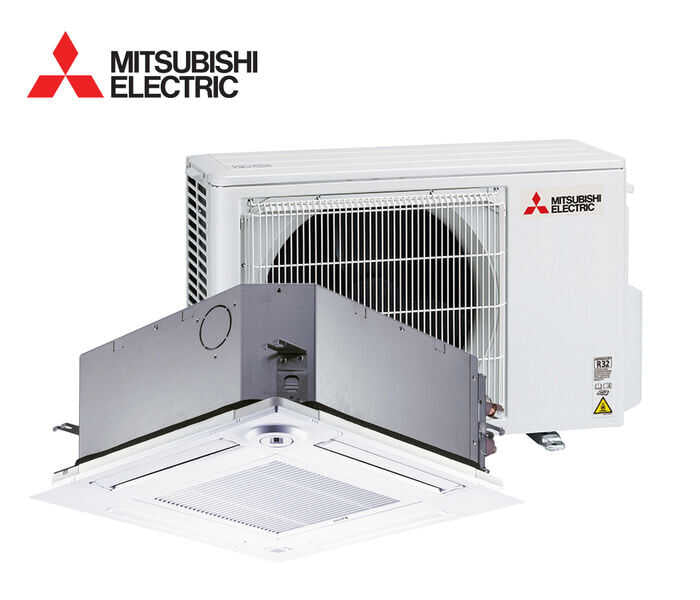

This Mitsubishi Electric compact ceiling cassette is rated at 2.5kW and supplied under model SLZ-M25FA-A / SUZ-M25VAD-A. It is a reverse cycle system charged with R32 refrigerant, on a single phase supply and with a wired controller.
- Capacity: 2.5kW
- Model: SLZ-M25FA-A / SUZ-M25VAD-A
- Refrigerant: R32
- Power supply: single phase
- Control: wired controller
- Configuration: compact ceiling cassette, reverse cycle

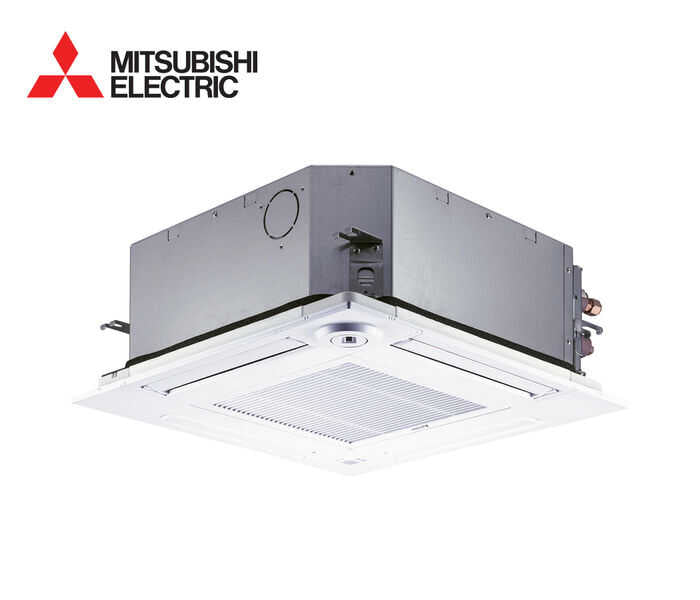

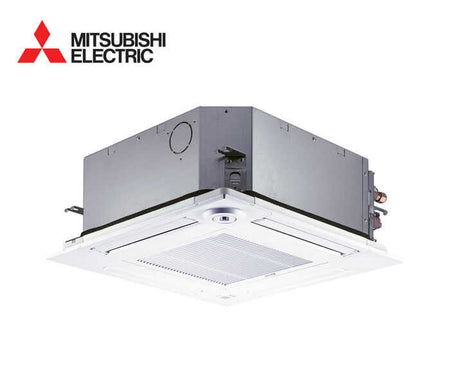

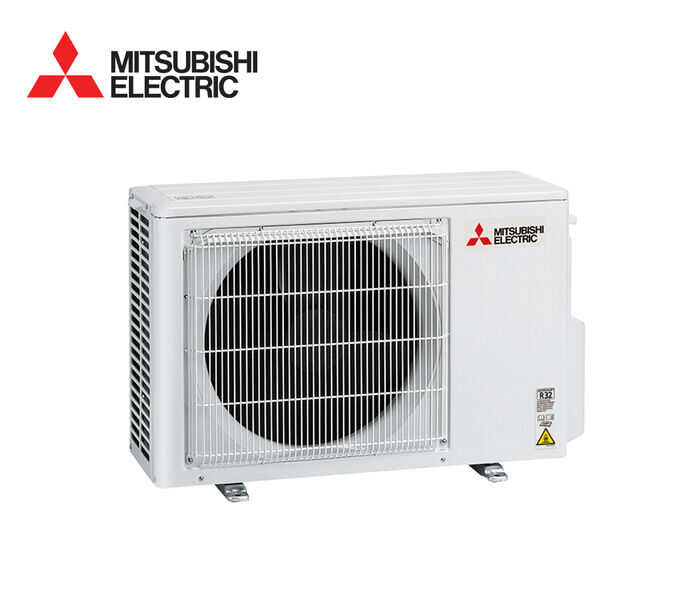

The compact chassis is designed for a restricted ceiling space and spreads air evenly from one ceiling position, which suits bedrooms, studies and small offices where a wall unit is not wanted. The SLZ-M25FA-A indoor unit is connected to the SUZ-M25VAD-A outdoor unit with refrigerant pipework and an interconnecting cable, and condensate is piped to a drain. The wired controller is mounted on a wall and cabled back to the cassette. An ARC-licensed technician must install the system.

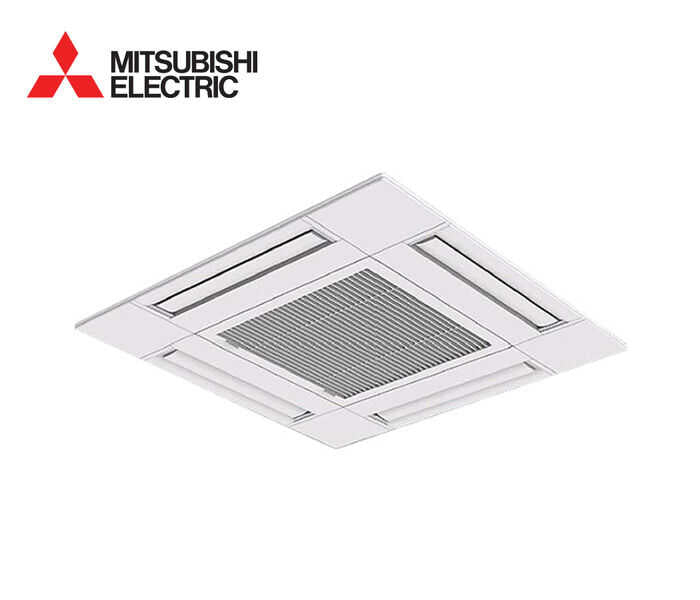

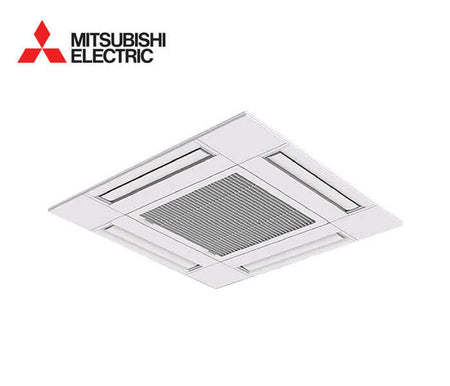

The product title quotes SLP-2FA with the indoor unit, while the model line pairs the indoor unit with SUZ-M25VAD-A, so confirm exactly which components are included before ordering. Check the single phase circuit, the ceiling depth at the chosen spot, and that 2.5kW suits the room's heating and cooling load.
