Nose cone to suit Mitsubishi Electric 14kW (NCMITD140)

Nose cone to suit Mitsubishi Electric 14kW (NCMITD140)

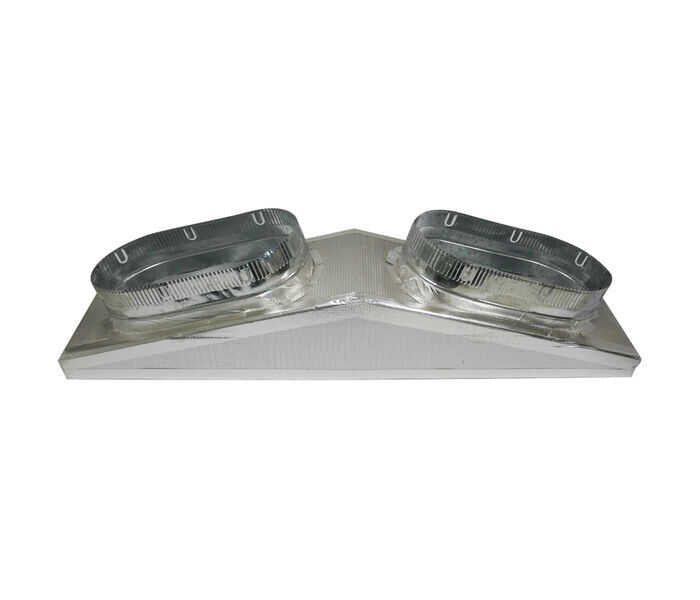

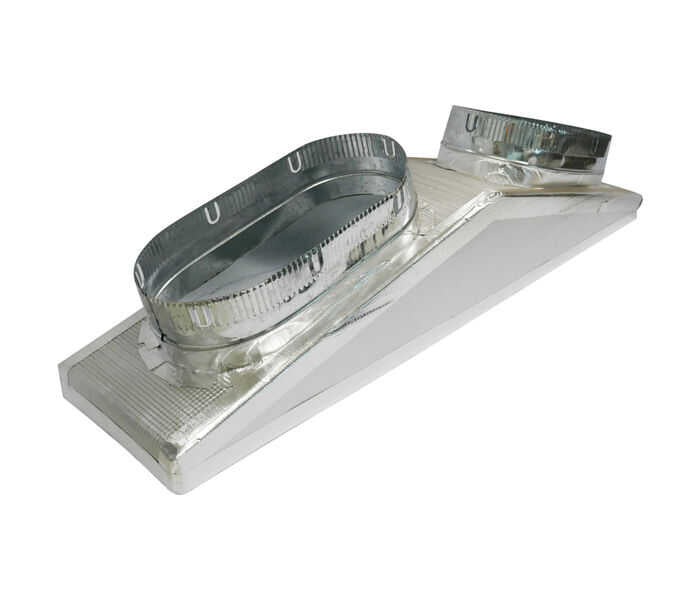

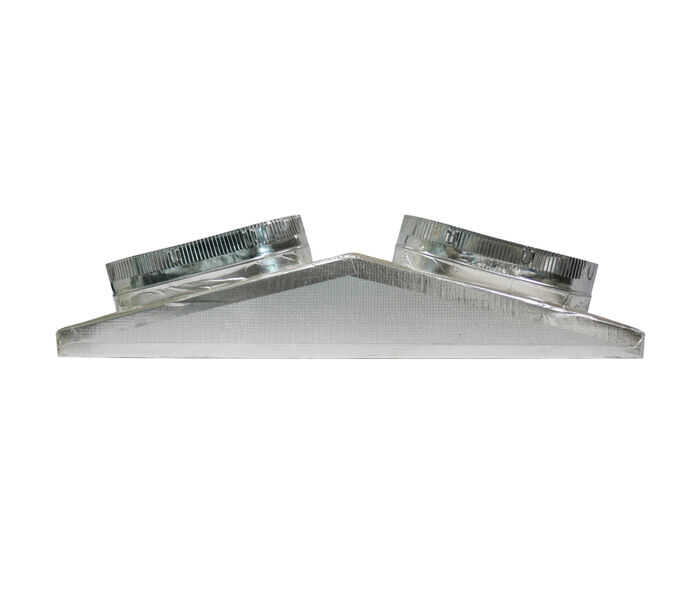

The NCMITD140 nose cone suits Mitsubishi Electric 14kW ducted units with a long, slim 1560 x 180mm supply outlet, and narrows to two 350mm spigots for flexible duct.

• Suits: Mitsubishi Electric 14kW ducted units
• Face: 1560 x 180mm
• Spigots: 2 x 350mm
• 5mm external silver insulation
• Material: sheet metal
• Code: NCMITD140
• Brand: AAD

Because the face is wide and shallow, the cone gathers air across a long outlet and brings it into two round 350mm connections. Fix it to the outlet flange, seal the joint, and fit each 350mm flexible duct with a strap and tape. It is an AAD transition made to suit the Mitsubishi Electric unit, not a part from that maker.

Mitsubishi Electric 14kW units are covered by more than one cone with very different faces, so measure the outlet on your unit and confirm it is 1560 x 180mm. The D in the code matters. Check your indoor unit model number against the one listed before ordering.
