Mitsubishi Electric cassette shutter plate (PAC-SJ37SP-E)

Mitsubishi Electric cassette shutter plate (PAC-SJ37SP-E)

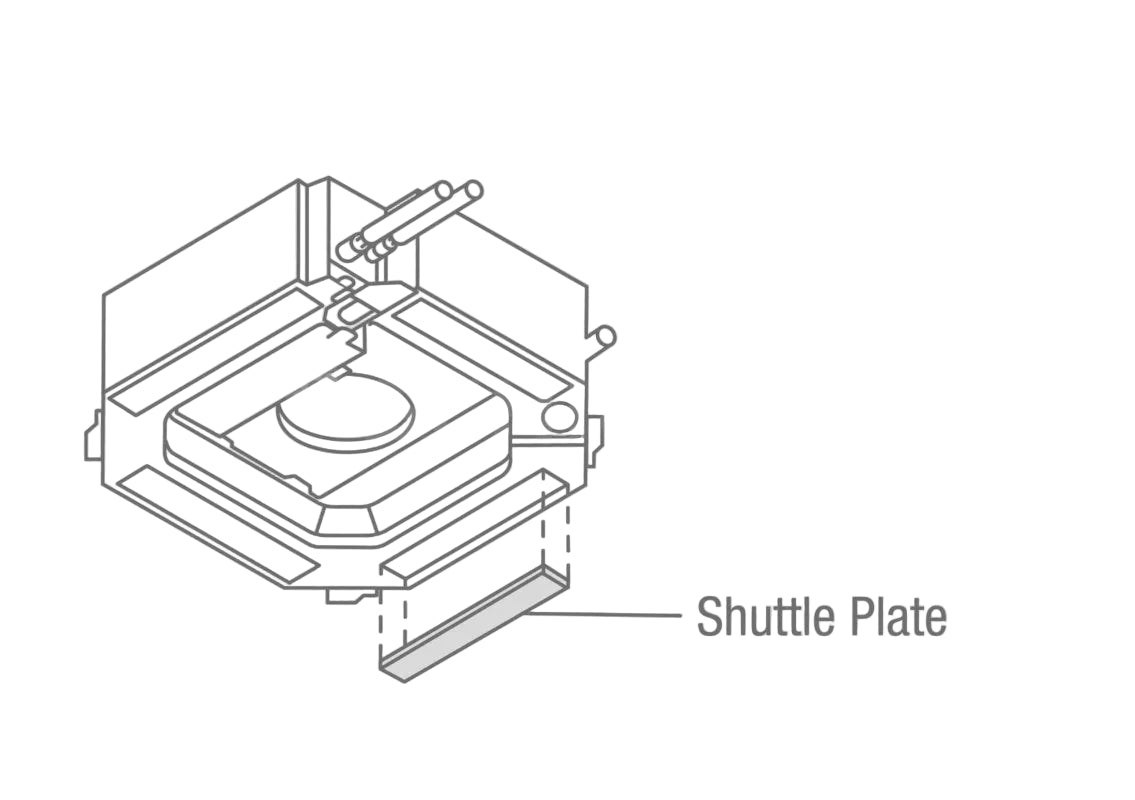

Part PAC-SJ37SP-E is a shutter plate for Mitsubishi Electric PLA-M series four way cassette fascia panels. It clips over one air outlet on the fascia to block discharge in that direction.

• Part number: PAC-SJ37SP-E
• Application: PLA-M series four way cassette fascia panels
• Function: closes off a single supply air outlet
• Installation: clip on

A four way cassette sends air out on every side, which is not always wanted. The shutter plate is used on corner installations, or where one outlet faces an obstruction such as a wall, bulkhead or beam and supply air would otherwise be discharged into it. Closing an outlet sends the air out through the remaining sides instead. The plate is a clip on part, so it can be added when the fascia is fitted or later.

One plate closes one outlet, so order to suit the number of outlets to be blanked off. Check the fascia panel is from the PLA-M series four way cassette range, and ask your installer whether closing outlets needs any change to the unit's settings at commissioning.

We don't show live stock levels on our website, because our products are held by our suppliers in New South Wales and Victoria. Stock is confirmed with the supplier when your order is processed. If an item is unavailable or delayed, we will contact you by phone or email to offer an alternative, an expected dispatch date or a full refund, whichever you prefer.

• Delivery area: every Australian state and territory.
• Delivery cost: $40 per order for parts and accessories, free for orders of $600 or more; $89 per order for air conditioning and heating units, with any parts and accessories in the same order shipped free. One charge per order. Prices include GST and are shown at checkout before you pay.
• Dispatch: usually within 1 business day (allow up to 3 business days). Orders placed after 12:00 pm Sydney time are processed the next business day.
• Delivery time after dispatch: usually 3 to 4 business days to most addresses, and up to 10 business days to regional and remote areas, including WA, the NT and Tasmania.
• Pickup: not available. All orders are delivered.

AC Hub Direct does not run its own warehouse. Orders are dispatched from our suppliers' warehouses in New South Wales and Victoria, usually from the location nearest to you that has stock.

See our Shipping and Delivery Policy for full details.

Change of mind: request a return within 14 days of delivery. Items must be unused, uninstalled and in their original unopened packaging. A 15% restocking and administration fee applies, you pay the return freight, and the original delivery charge is not refunded.

Cancellations: if you cancel before your order is dispatched, we refund it less a 4% administration fee, which covers payment processing costs. Once an order is dispatched, a cancellation is handled as a change-of-mind return.

Faulty, damaged or incorrect items: no restocking fee, and we cover the return freight. Your rights under the Australian Consumer Law apply.

See our Returns and Refunds Policy for full details.

Manufacturer's warranty terms vary by brand, and some manufacturers require installation by a licensed technician or purchase from a dealer they have authorised, so please ask us for the manufacturer's published warranty terms before you buy; your rights under the Australian Consumer Law are not affected. The warranty period and what it covers are set out in the manufacturer's warranty documentation.

Refrigerant-based systems must be installed by an ARC-licensed technician, gas appliances by a licensed gasfitter, and electrical work by a licensed electrician. Manufacturers may refuse warranty claims where installation does not meet these requirements.

If you have a problem, contact us with your order number and a description of the fault, and we will help you with the claim.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. See Warranty Information.
