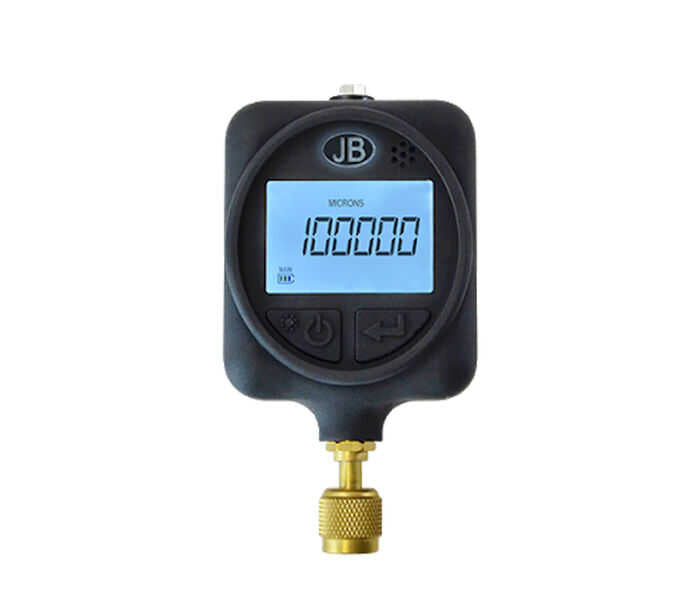

JB digital vacuum gauge with carrying case (DV24N)

JB digital vacuum gauge with carrying case (DV24N)

The JB Industries DV24N is a digital vacuum gauge for HVAC and refrigeration evacuation, supplied in a rugged carrying case. It reads from 100,000 down to 10 microns.

• Model: DV24N
• Measuring range: 100,000 to 10 microns
• Sensor: extended range MEMS
• Units: microns, PSIA, inHg, Pascals, Torr, mTorr, mBar
• Display: backlit digital
• Alarms: audible and visual at target vacuum
• Operating temperature: 0 to 48.9 degrees C
• Power: three AA batteries, supplied

It connects directly to the system service port without a hose, which shortens response time during evacuation. Audible and visual alarms signal when the target vacuum is reached, and the backlit display shows the reading in the unit you choose. A low battery indicator and automatic shut off preserve battery life.

Check the gauge connection against the service ports or vacuum fittings you use. Evacuation, charging and other refrigerant work must be carried out by an ARC-licensed technician. Keep the sensor port clean and capped when not in use, and store the gauge in its case between jobs.
