Supply air plenum to suit Fujitsu, 855 x 300mm (MSAFU9102X35LH)

Supply air plenum to suit Fujitsu, 855 x 300mm (MSAFU9102X35LH)

MSAFU9102X35LH is an AAD supply air plenum made to suit Fujitsu ducted units (ARTH30-36KHTA), with an 855 x 300mm face and two 350mm spigots.

• Suits: Fujitsu ducted units (ARTH30-36KHTA)
• Face: 855 x 300mm
• Spigots: 2 x 350mm
• 5mm external silver insulation
• Material: sheet metal
• Code: MSAFU9102X35LH
• Brand: AAD

Fitted to the indoor unit's supply outlet, the plenum splits the air into two 350mm flexible ducts. Fix the face to the outlet flange, tape around the join, and connect each duct with a strap and tape. Keep the duct runs supported so they do not pull on the spigots.

Confirm the unit is one of the listed Fujitsu models and that its outlet matches 855 x 300mm. Check both supply runs are 350mm. It is made to suit the Fujitsu unit, not by Fujitsu. Check your indoor unit model number against the one listed before ordering.

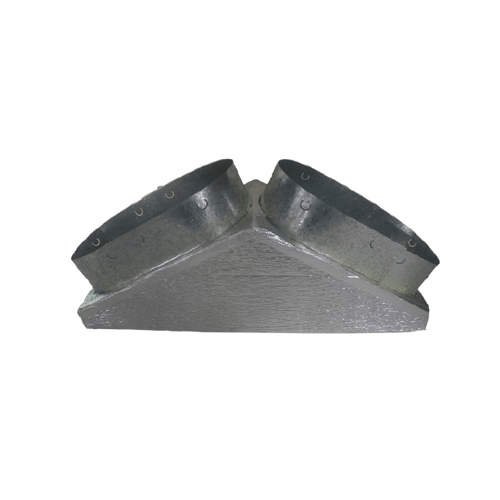

The photo shows a typical insulated supply air plenum from this range; the dimensions and spigots supplied are as listed above.
