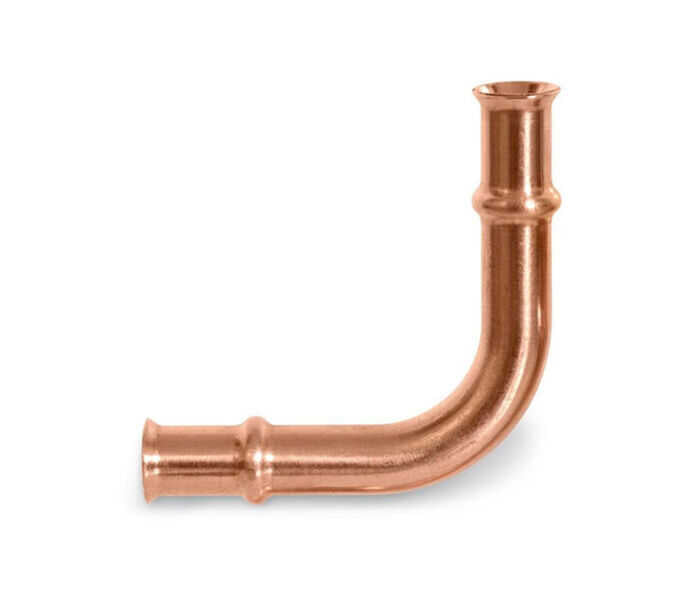

RLS elbow 90° 1/2", bag of 3 (RELB90012)

RLS elbow 90° 1/2", bag of 3 (RELB90012)

A bag of 3 RLS 90° elbows for 1/2" refrigeration and air conditioning copper pipework, pressed on with a press tool and jaws instead of brazed.

• Brand: RLS
• Size: 1/2"
• Angle: 90°
• Quantity: bag of 3
• Flame-free press fitting, no brazing or nitrogen purge needed
• Continuous operating temperature: 120°C
• Maximum rated pressure: 700 psi (48 bar)
• Maximum burst pressure (UL 207): 2100 psi (145 bar)
• Vibration resistance: conforms to ULD 109
• Code: RELB90012

A right-angle press elbow gives a compact, repeatable turn on 1/2" tube, useful at corners, risers and unit approaches. Cut and deburr the tube, mark the insertion depth, seat the tube fully in each end and press with the 1/2" jaw. Because there is no flame, the elbow can be fitted close to insulation and building materials. Install with a compatible press tool and the correct jaw for the pipe size, following RLS instructions.

Confirm a 1/2" tube outside diameter and count the right-angle turns in the run, with 3 elbows per bag. A compatible press tool and 1/2" jaw are needed. Refrigerant pipework must be installed by an ARC-licensed technician.
