Double deflection grille 300 x 100mm (DD3010)

Double deflection grille 300 x 100mm (DD3010)

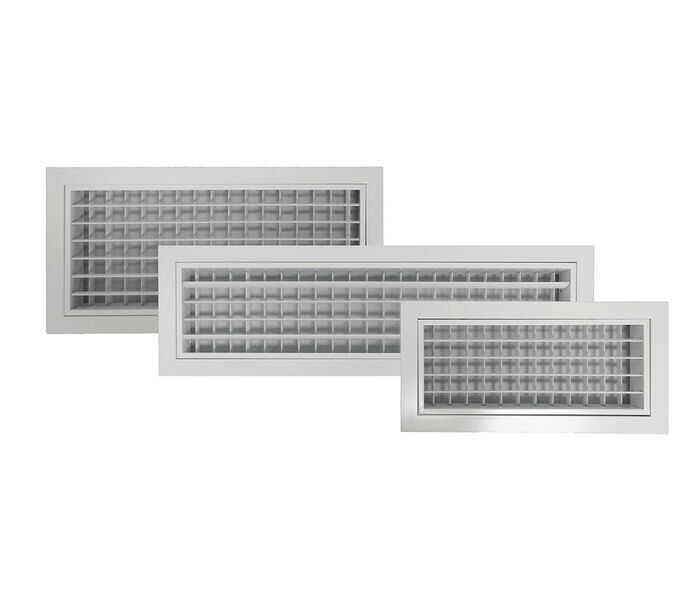

This double deflection supply air grille is 300 x 100mm, with two sets of adjustable blades so the air can be aimed up, down and side to side. It comes in white RAL9010 and suits small wall or bulkhead outlets in ducted systems.

• Brand: AAD
• Range: Select Range
• Size: 300 x 100mm
• Two sets of adjustable blades
• Colour: white (RAL9010)
• Actual size: 297 x 97mm
• Removable core
• Cushion head box listed to suit: CHB3010 (300 x 100mm)
• Code: DD3010

The catalogue lists the grille at an actual size of 297 x 97mm with a removable core, and pairs it with the CHB3010 cushion head box at 300 x 100mm. Fix the box in the wall or bulkhead, connect the flexible duct with a strap and tape, then fit the grille. Once the system is running, set the front and rear blades to throw the air across the room rather than onto people.

Order by the 300 x 100mm nominal size and check any existing opening against the 297 x 97mm actual size. Confirm the cushion head box fits the wall cavity or bulkhead depth, and that the supply duct size suits the design for this outlet.
