Insulated ceiling box 450mm square, 250mm spigot (CHB4545-25)

Insulated ceiling box 450mm square, 250mm spigot (CHB4545-25)

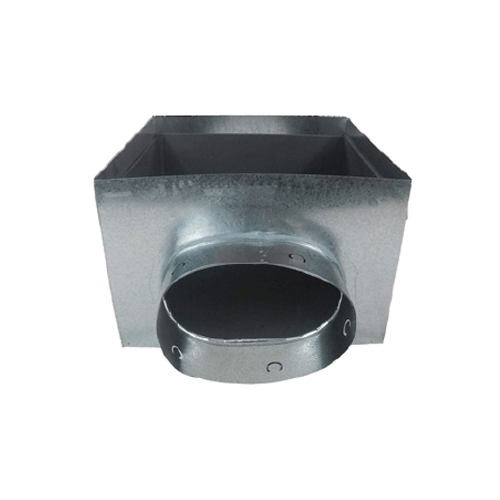

AAD CHB4545-25 is an internally insulated 450mm square ceiling box, 320mm deep, with a 250mm spigot and a damper blade, for connecting flexible duct to a ceiling diffuser.

• Brand: AAD
• Face: 450mm square
• Depth: 320mm
• Spigot: 250mm
• Internally insulated, with damper blade
• 40mm lip
• Code: CHB4545-25
• Insulation: 20mm internal
• Ceiling type: metal T bar
• Listed to suit: ALD595 diffuser

A 250mm spigot on a 450mm box suits an outlet that needs a moderate amount of air through a large diffuser face. Fit the box above the ceiling, attach the diffuser below and connect the 250mm flexible duct to the spigot with tape and a strap. The damper blade gives a simple way to trim the airflow at the outlet when balancing the system.

Check that your diffuser matches a 450mm square box, that the duct run is 250mm and that the ceiling void has at least 320mm of depth for the box.
