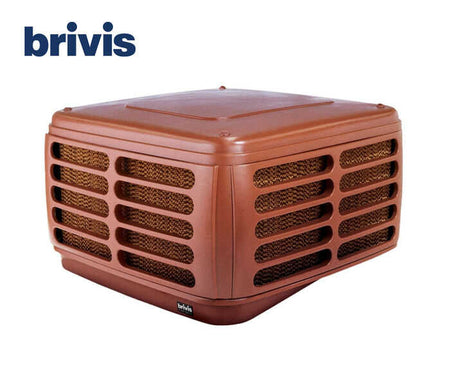

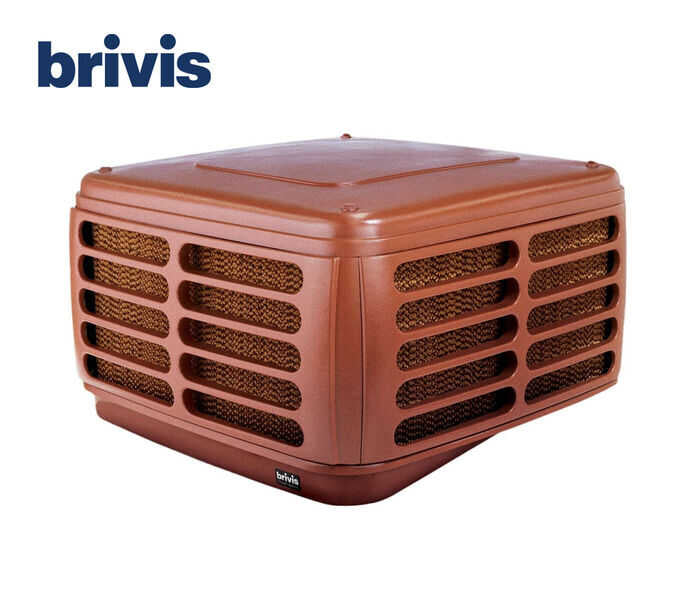

Brivis Advanced+ 13kW evaporative cooler, Terra Red (F46DS)
Brivis Advanced+ F46DSTERRARED, a 13kW roof mounted evaporative cooler with a terra red cabinet.
- Capacity: 13kW
- Model: F46DSTERRARED
- Series: Advanced+ F series
- Colour: terra red
- Cooling pad: 75mm
- Power supply: single phase
- Cabinet: UV protected polymer with sloping base
- Control: variable fan speed, Brivis Touch controller compatible
The terra red finish is matched to tiled roofing. Fan speed is variable and can be set at the controller or through a Brivis Touch controller. Outside air passes through the 75mm cooling pad, where water evaporating from the pad cools it, and the air is then sent down a roof dropper into the ducted outlets. The cabinet is UV protected polymer with a sloping base.
This unit needs a single phase power supply, which a licensed electrician must connect, plus a water supply and drain installed by a licensed plumber. Before ordering, check the roof can carry the cooler, plan where the dropper will enter the roof space, and ask your installer to confirm the duct design suits a 13kW system.
