Bar grille 400 x 100mm (BG4010)

Bar grille 400 x 100mm (BG4010)

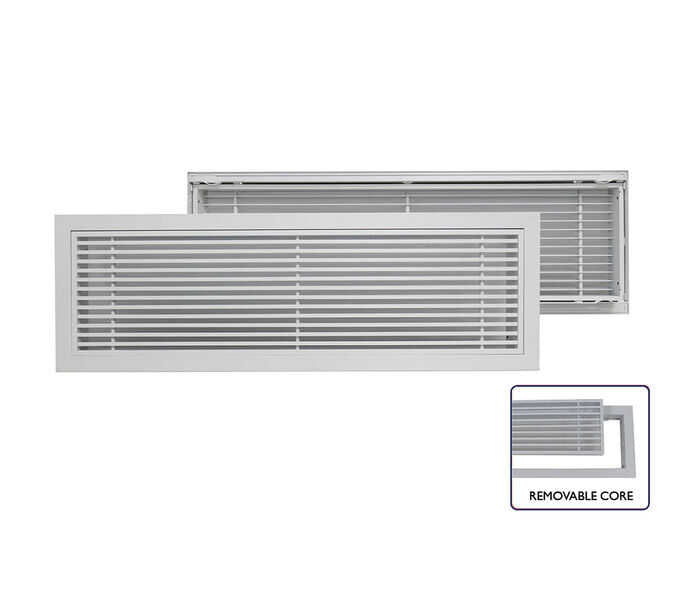

A 400 x 100mm metal bar grille, actual size 397 x 97mm, for supply or return air in a ducted system. The slim 100mm face keeps the outlet discreet on a ceiling, wall or bulkhead, and the finish is white RAL9010.

• Brand: AAD
• Range: Select Range
• Size: 400 x 100mm
• Actual size: 397 x 97mm
• Colour: white (RAL9010)
• Cushion head box listed to suit: CHB4010 (400 x 100mm)
• Code: BG4010

The grille mounts in the CHB4010 cushion head box, listed at 400 x 100mm, and the box takes the flexible duct. Strap and tape the duct onto the box spigot so the joint stays sealed, then fit the grille squarely. On a supply, set it where the air can move along the ceiling rather than straight onto someone sitting below.

Order by the 400 x 100mm nominal size and use 397 x 97mm when checking an existing opening. Make sure the framing leaves room for the box and that the outlet's role and duct size match the system design.
