Bar grille 300 x 100mm (BG3010)

Bar grille 300 x 100mm (BG3010)

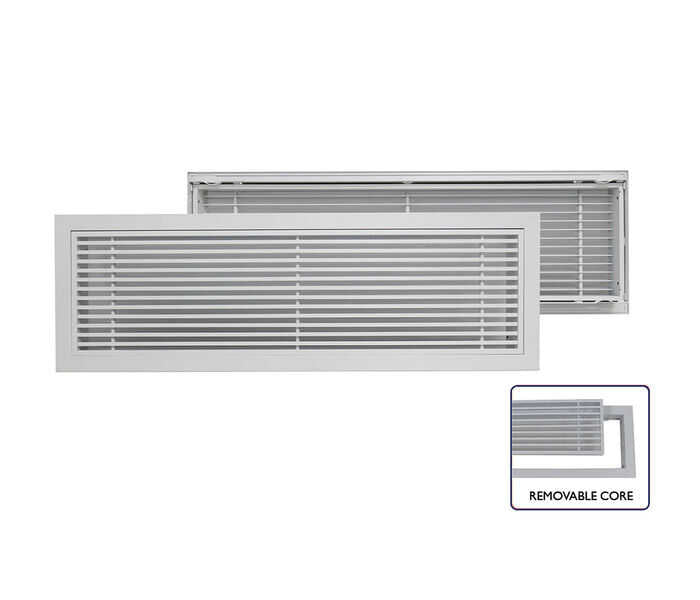

The 300 x 100mm metal bar grille is a compact outlet, actual size 297 x 97mm, for supply or return air in a ducted system. Finished in white RAL9010, it suits a small room or a narrow strip of wall, ceiling or bulkhead.

• Brand: AAD
• Range: Select Range
• Size: 300 x 100mm
• Actual size: 297 x 97mm
• Colour: white (RAL9010)
• Cushion head box listed to suit: CHB3010 (300 x 100mm)
• Code: BG3010

It fits into a cushion head box that connects to flexible duct; the catalogue lists CHB3010 at 300 x 100mm to suit. Fix the box into the framing, strap and tape the duct onto the spigot, then fit the grille into the box. Being small, it is easy to place close to a cornice or above a door where a larger outlet would not fit.

Order by the 300 x 100mm nominal size and check an existing hole against the actual 297 x 97mm grille. A small outlet suits a small airflow, so check the system design allows for this size at this point and whether it is supply or return.
