Bar grille 1747 x 147mm (BG1750)

Bar grille 1747 x 147mm (BG1750)

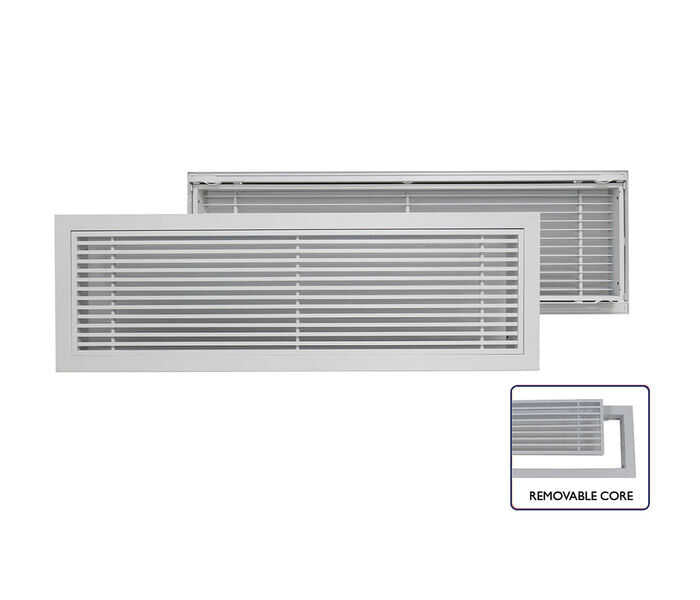

Measuring 1747 x 147mm, this metal bar grille gives a long, unbroken linear face for a supply or return outlet in a ducted system. It sits in the commercial range and is finished in white RAL9010.

• Brand: AAD
• Range: Select Range
• Size: 1747 x 147mm
• Colour: white (RAL9010)
• Commercial range
• Cushion head box listed to suit: CHB17015 (1750 x 150mm)
• Code: BG1750

Mount the grille on its matching cushion head box, which the catalogue lists as CHB17015 at 1750 x 150mm. With a box this long, check it is supported along its length, then connect the flexible duct to the box spigot with a strap and tape. A length like this suits a feature bulkhead or a long ceiling edge, and on a return it gives a wide intake that is easy to keep clear.

Confirm there is a clear 1750mm run for the box and that the ceiling framing allows it to sit level. If you are matching an existing opening, compare it with the 1747 x 147mm size. The system design should state whether this position is supply or return and what duct size feeds the box.
