Bar grille 1150 x 100mm (BG11510)

Bar grille 1150 x 100mm (BG11510)

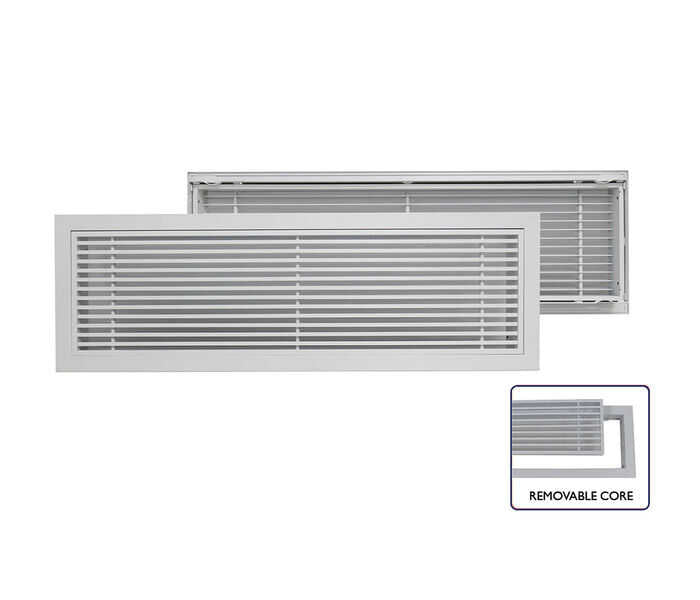

A long, slim metal bar grille with a nominal size of 1150 x 100mm and an actual size of 1147 x 97mm. The bars give a clean linear look along a ceiling, wall or bulkhead, and the grille can be used for supply or return air in a ducted system.

• Brand: AAD
• Range: Select Range
• Size: 1150 x 100mm
• Actual size: 1147 x 97mm
• Colour: white (RAL9010)
• Cushion head box listed to suit: CHB11510 (1150 x 100mm)
• Code: BG11510

The grille fits to a cushion head box, which carries the flexible duct connection. In the AAD catalogue the box matched to this size is CHB11510, listed at 1150 x 100mm, so the nominal size is the box size and the grille is made a few millimetres smaller to suit. Fix the box to the framing first, connect and tape the duct, then fit the grille.

Order by the nominal 1150 x 100mm size, and use the actual size of 1147 x 97mm when you check the fit in an existing opening. Make sure there is length in the ceiling or bulkhead for a box 1150mm long, and confirm with the system design whether the outlet is supply or return so the duct is sized for it.
