Aradon fire rated paired copper 1/4" + 5/8" x 18m, 19mm (AFR145819)

Aradon fire rated paired copper 1/4" + 5/8" x 18m, 19mm (AFR145819)

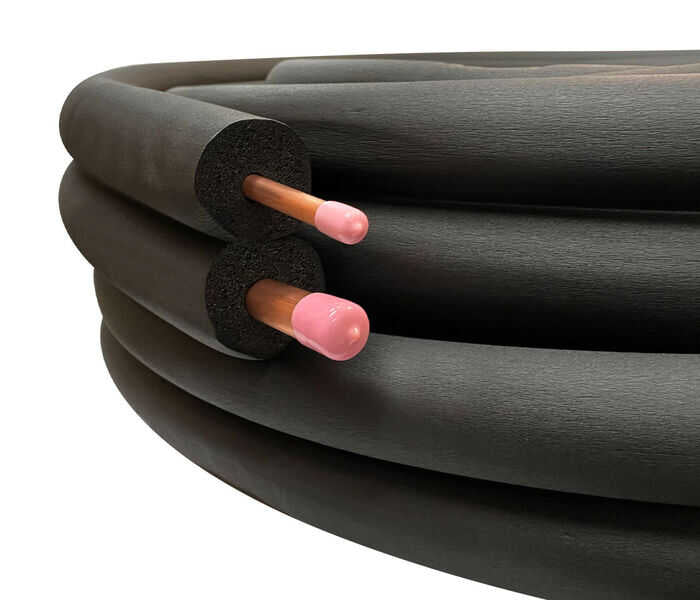

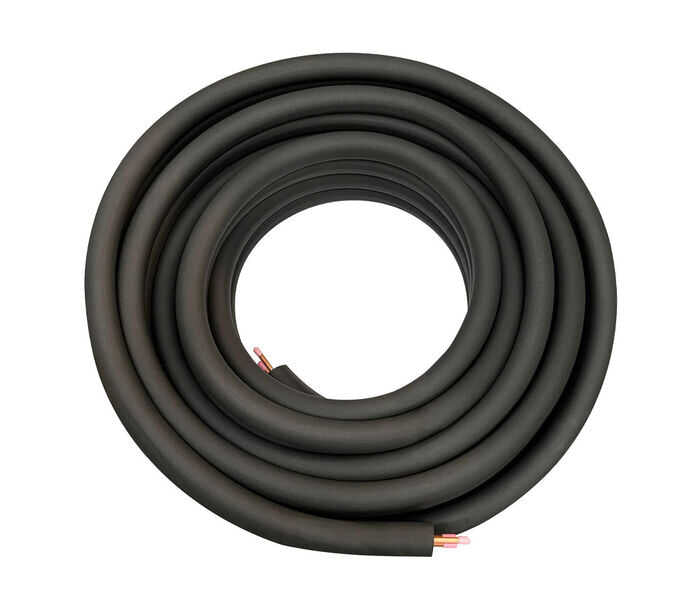

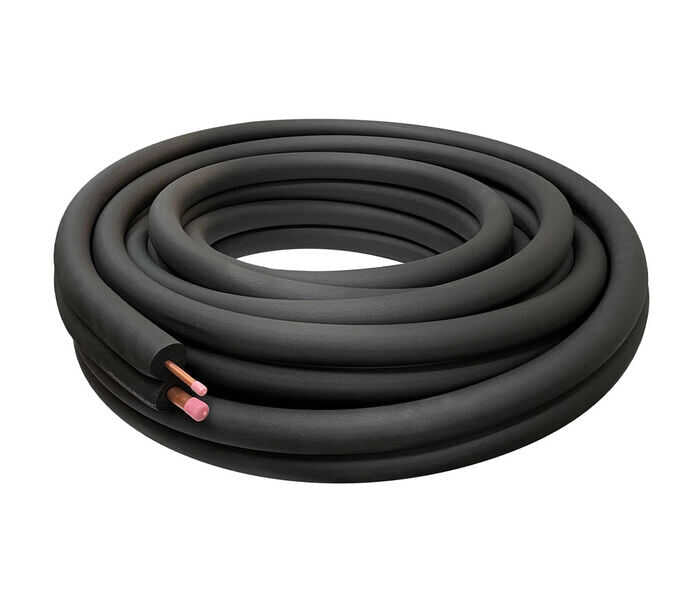

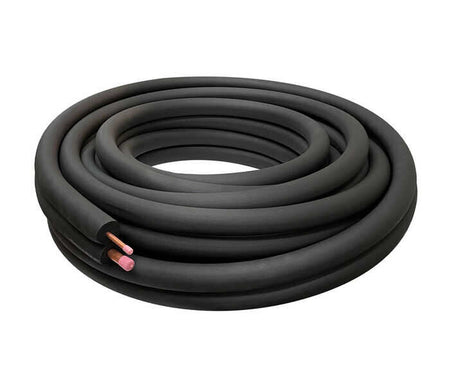

Aradon fire rated paired copper in an 18m coil, combining a 1/4" line with a 5/8" line under 19mm rubber insulation. The pair connects the indoor and outdoor units of a split system that calls for these two pipe sizes.

• Brand: AAD
• Range: Aradon
• Lines: 1/4" and 5/8"
• Length: 18m
• Insulation: 19mm rubber
• Insulation R-value: R1.25/.93
• Annealed copper tube to AS/NZS 1571
• Fire hazard properties tested to AS/NZS 1530.3
• R32 and R410A rated
• Code: AFR145819

The 5/8" line is the larger of the pair, so take extra care when bending it and use a tube bender on tight changes of direction. Run the pair from the indoor unit to the outdoor unit, cut to length, then flare or braze the ends to suit the unit connections. Tape or seal each insulation joint so the full run stays covered. Refrigerant pipework must be installed by an appropriately licensed technician.

Check the unit manufacturer's manual for the required pipe sizes and pipe length limits, and confirm that 18m is enough for your route. Where the building calls for fire rated pipe insulation, check that the 19mm wall and the listed R-value meet the requirement. Refrigerant work in Australia requires an ARC-licensed technician.
